Dock Levelers
We provide a large range of loading dock product offerings to satisfy an extremely wide variety of applications.
Our dock levers are available in different types, shapes and sizes including custom designs to fit a business's needs. All dock levelers products are designed to increase safety and productivity. We offer you the strength of our experience to ensure everything works perfectly and is built with a structural steel frame and a full width rear hinge for added strength and durability.
Features
- Dock levelers ensure a smooth transition of goods from dock to truck, and they are a necessity in applications where a forklift or other heavy load is being driven or wheeled from a dock into a trailer.
- Levelers provide a platform and have shock-absorbing components to stabilize the load transfer into the trailer or box truck.
- Convenient push button activation and proven hydraulic technology increase the efficiency and safety of the loading/unloading process
- Equipped with full range toe guards, night lock, hydraulic fall safe and a maintenance stand
- Deck design accommodates canted trucks / trailers up to 4"
- Rubber truck bumpers

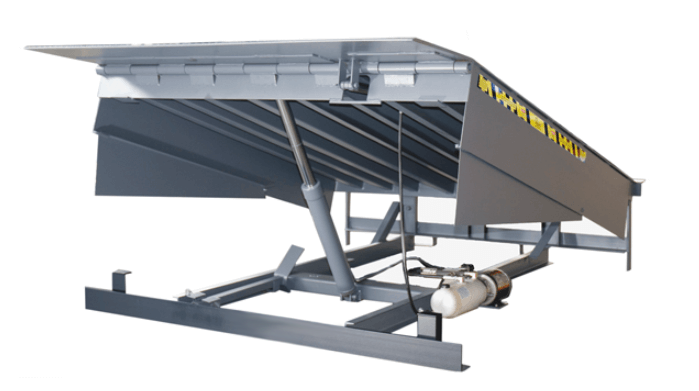

Hydraulic DOCK LEVELER
30,000lb. Capacity
HIGH CAPACITY Hydraulic DOCK LEVELER
up to 100,000lb. Capacity
PIT STYLE MECHANICAL DOCK LEVELER
30,000 to 50,000lb. CAPACITY
Hydraulic DOCK LEVELER
25,000 to 60,000lb. Capacity

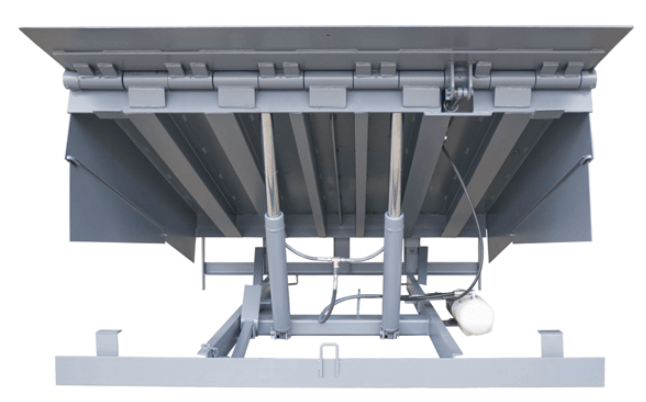

Hydraulic ULTIMA DOCK LEVELER
up to 45,000lb. Capacity
U-SERIES HYDRAULIC DOCK LEVELER
30,000 to 80,000lb. CAPACITY
More Hydraulic Loading Dock Levelers
Hydraulic Dock Leveler - AUTODOK® H SERIES
Structurally designed for the most demanding applications with easy push button convenience for smooth, consistent operation plus outstanding toughness and dependability in your most challenging dock operations. Overhead Door™ offers a hydraulic dock leveler to meet any of your dock equipment needs while providing low lifetime ownership costs and years of trouble free service with the industry's best built in safety.
Hydraulic Dock Leveler - HP SERIES
Designed with dependability and toughness in mind for your medium to lighter duty applications. They offer the same easy push button smooth, consistent operation as the heavy duty H series and the same built in safety, durability and toughness. Easy clean out and servicing are features of all Overhead Door™ levelers. Your budget, your safety and trouble free service are always number one with us.
Hydraulic Dock Leveler - VSH Vertical Leveler
This vertical storing leveler has a smooth hydraulic operation and offers unique benefits, such as unmatched environmental control for temperature sensitive applications. The VSH provides the ability for the dock door to seal along the concrete floor, creating a cleaner and more energy-efficient environment in the warehouse. The VSH can be installed in either a single pre-formed pit or a longer shelf style pit for multiple units.
Air-Powered Dock Levelers
Air Powered Levelers - CentraAir® Series
The CentraAir® Series is designed to incorporate the use of common plant air combined with an industrial automotive grade air bellows system to raise and lower the platform. The CentraAir offers a practical alternative to achieve easy push button smooth, consistent operation, it can also be manually activated via a lanyard control located at the back of the leveler. Ease of clean out and servicing are features of all Overhead Door™ levelers.
Air Powered Levelers - MA SERIES
Economical operation with an air powered system that provides full float in all positions. The low pressure, high volume air system offers the same easy push button smooth, consistent operation as our hydraulic line while maintaining the safety, durability and toughness of Overhead Door™ dock equipment. Safe, Affordable, easy to operate and low lifetime costs continue to be the hallmark of the entire Overhead Door line of equipment.
Mechanical Dock Levelers
Mechanical Leveler - MP SERIES
Finger tip release pull chain activation with smooth reliable operation via a cam and roller counterbalance to assure smooth dependable walk down to trailer bed with below dock capability included. The hold down design floats with air ride trailers and the full width rear compression hinge is designed for superior strength. Designed to meet your budget plus offer years of trouble free service.
Edge-of-Dock Leveler
HED Edge-of-Dock Leveler
Edge of Dock levelers are a cost effective alternative to pit style levelers. The HED is hydraulically operated with a single push button control. It has a quiet dependable operation via a two-cylinder design with deck and lip cylinders. The HED provides a recommended working range of +/-3", with maximum operating range of +/-5" above and below dock level.
MEDLF Mechanical Edge-of-Dock Leveler
For the lowest upfront costs, look to this mechanically operated Edge of Dock leveler. The MEDLF is a lighter duty leveler normally mounted to the face of the dock and is meant for a captive fleet of trucks with a similar bed height. Operation is a two-step process with a "lift free" handle to place the unit in the trailer.
